Applications
· Audio
· Video
· Communication networks
· Robotics
· Frequency Converter
· Stereo Amplifier
· LED Screen
Specifications
· Current Rating: 7.9A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 1000V AC
· Contact Resistance: 30mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Tin--Standard
Gold
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

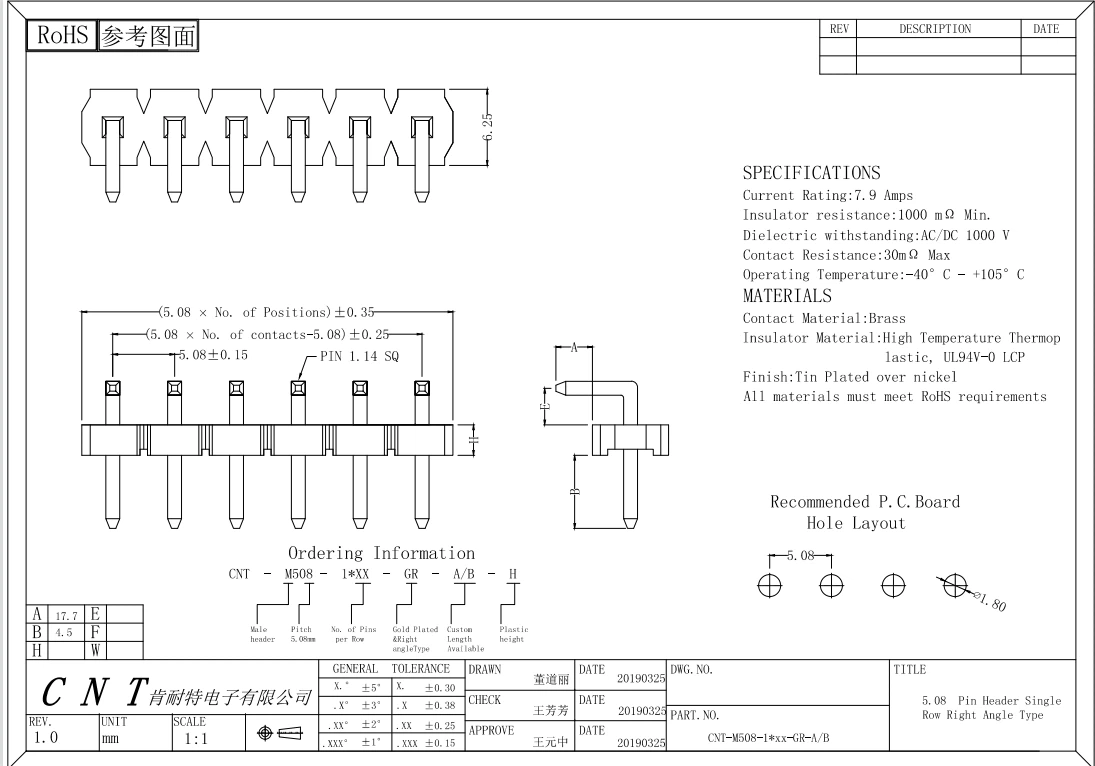

· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Compachness of electronic products
● Easy assembling and low production cost
● Simple and clean internal design
● Simplify manufacturing procedure
Advantages
● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in male pin header connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in male pin header connector, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
What are the packaging methods?
There are different packaging methods according to different products, specifically PE bags, blister boxes, blister trays, tubes and tape & reel.
What are the forms of CAP for SMT products?
The default tape and reel packaging comes with a cap. And there are the following types of caps: mylar, plastic cap and metal cap. Some customers do not need a cap and need to be notified in advance.
What does your quality inspection process include?
Incoming material inspection, first article inspection, process inspection, finished product inspection, and outgoing inspection.
