Applications
· Stereo Amplifier
· Video
· Elevators
· Industrial controls
· Robotics
· Security equipment
· Power systems
· Communication networks
Specifications
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8”) Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

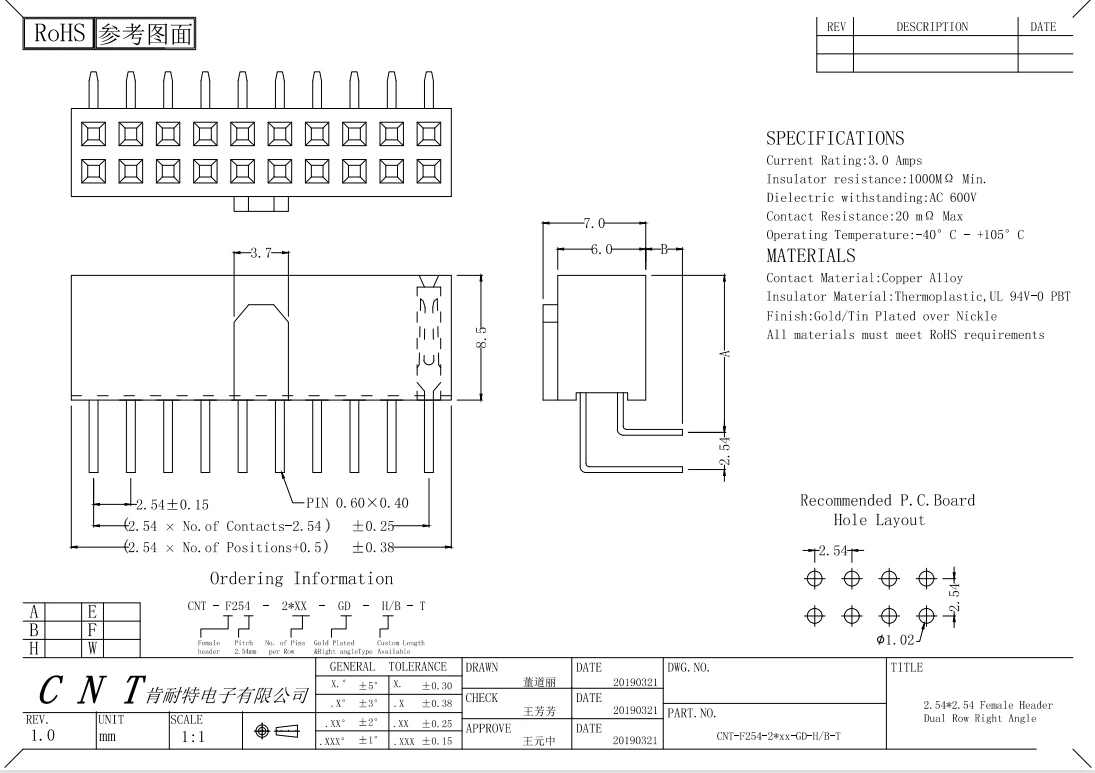

· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Low cost multiple pitches connectors per your application requirements.
● Light weight and flexible.
● Reduct the production cost
● High reliable board interconnecting
Advantages
● Well package, protect products during long international transit
● Mechanized production, stable quality
● Fast delivery time of average 4 weeks
● Professional consultancy & technical support
Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in 2x20 stacking header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 2x20 stacking header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
What is the best way to get customer service?
There are multiple ways to reach our customer service department. We accept e-mail, phone, and text messaging 24 hours per day, 7 days a week. We also have chat available on both websites www.ACWORKS.com and www.ACWORKS.ca.
If you are unsure about what to order you can send us supporting images so we can help you the best we can, without being there with you.Text us your images and we will help you find a solution.
How do you ensure the longevity and durability of board-to-board connectors?
To ensure the longevity and durability of board-to-board connectors, starting from the product design, material selection, testing and validation, whole production process to final quality ccontrol, CNT ensure that board-to-board connectors are able to withstand the mechanical and environmental stresses of the application and provide reliable and consistent performance over an extended period of time.
How do you ensure the electrical stability of connectors over time?
1)Select high-quality connectors
2)Conduct proper testing: Electrical stability can be affected by environmental conditions such as temperature, humidity, and dust.
3)Monitor the environmental conditions: Electrical stability can be affected by environmental conditions such as temperature, humidity, and dust. The factory should ensure that the connectors are installed in a suitable environment that does not expose them to extreme temperature or humidity.
4)Maintain cleanliness: Dirt, dust, and other contaminants can interfere with the electrical connectivity of connectors.
