Specifications
· Current Rating: 7.9A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 1500V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Tin--Standard
Gold
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

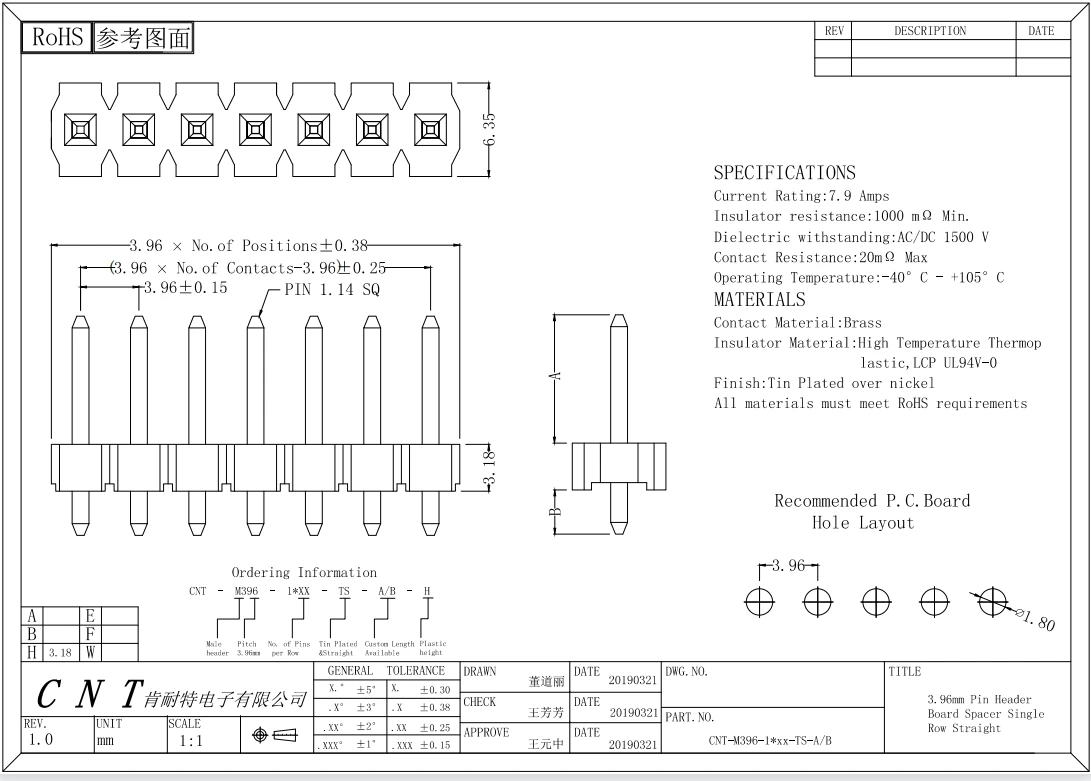

· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Be used to connect components in different physical orientations, making them ideal for use in a variety of applications.
● Enables the connection of multiple components in a compact space.
● Enhances the overall performance of the system
● Enhances the electrical conductivity of the connection
Advantages
● Fast delivery time of average 4 weeks
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in male dupont pins connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in male dupont pins connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
How does a board-to-board connector help in reducing the overall system cost?
The use of a board-to-board connector can help to simplify the assembly process, increase design flexibility, reduce maintenance and repair costs, and lower inventory and production costs, all of which can contribute to a reduction in the overall system cost.
What are the different mounting options for board-to-board connectors?
1)Surface mount: Surface mount connectors are mounted directly on the surface of the circuit board using reflow soldering. This type of mounting is suitable for high-density applications where space is limited.
2)Through-hole: Through-hole connectors are mounted by inserting the connector pins through holes in the circuit board and soldering them in place. This type of mounting is suitable for applications that require a high degree of mechanical stability.
3)Edge mount: Edge mount connectors are mounted on the edge of the circuit board using through-hole or surface mount technology. This type of mounting is suitable for applications where the connectors need to be easily accessible.
4)Blind mate: Blind mate connectors are designed to be mated and unmated without the need for precise alignment. This type of mounting is suitable for applications where connectors need to be quickly and easily connected and disconnected.
5)Board stacking: Board stacking connectors are designed to stack one circuit board on top of another. This type of mounting is suitable for applications that require multiple circuit boards to be stacked in a compact space.
6)Mezzanine: Mezzanine connectors are used to connect one circuit board to another that is perpendicular to it. This type of mounting is suitable for applications where multiple circuit boards need to be connected at right angles to each other.
The choice of mounting option depends on various factors such as the design of the circuit board, the application requirements, and the environmental conditions the system will be operating in.
