Applications
· Stereo Amplifier
· Home appliances
· Servo drives
· Video
· Scanner
· IoT
· Power systems
· Communication networks
Specifications
· Current Rating: 2A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 500V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8”) Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

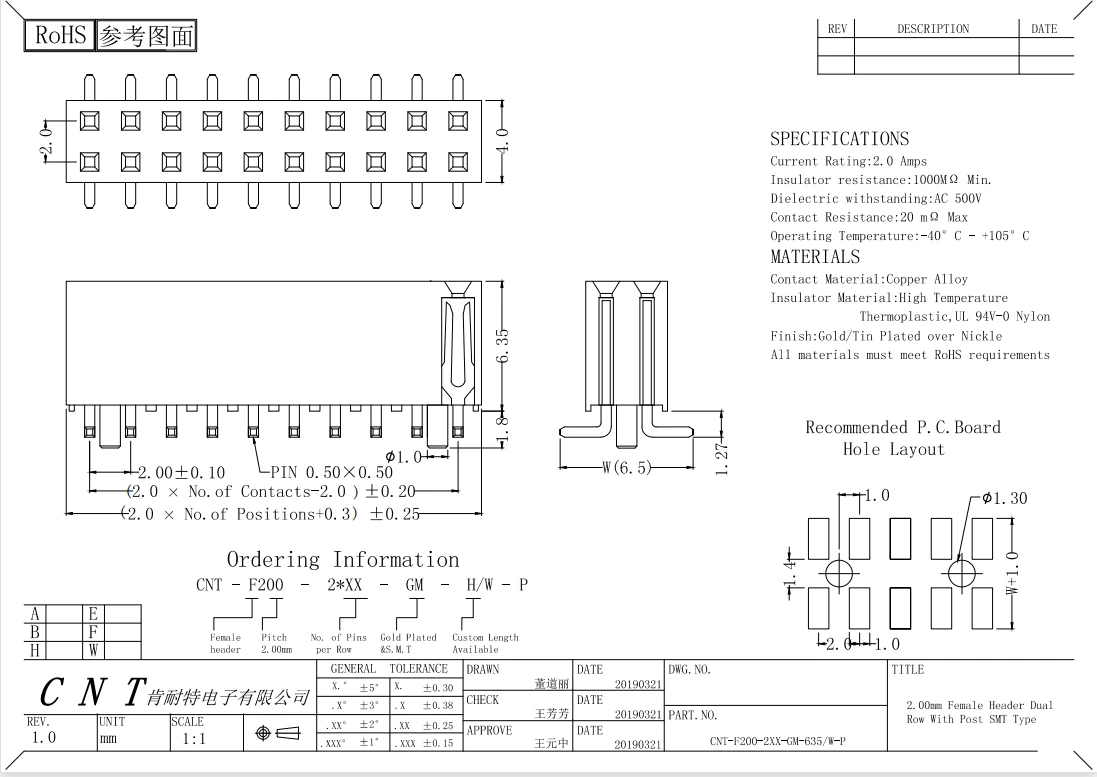

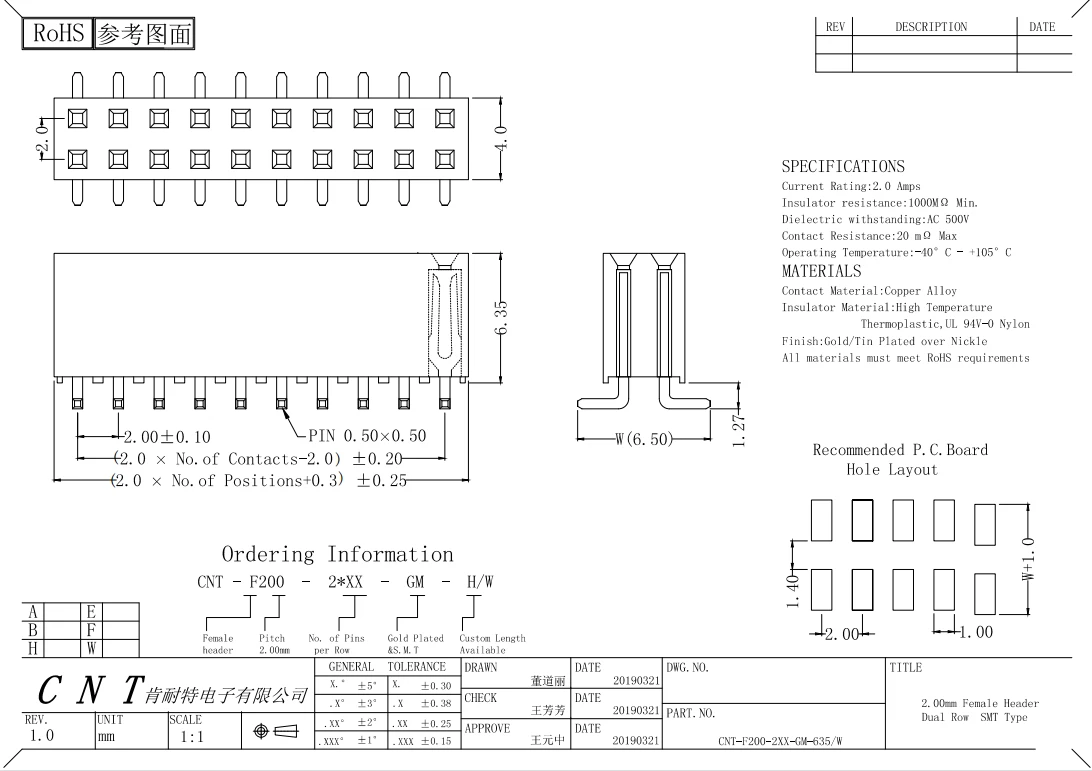

· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Ensure the smooth continuous and reliable flow of current
● Stable Connection
● Meet the demands of miniaturizing electronic products
● Could solve critical size requirement problem.
Advantages
● Professional consultancy & technical support
● Various transporation method
● According to the market demand, the product is continuously developed
● Customized products avaiable
Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in SMT female header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in SMT female header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
How long is your lead time?
CNT implements diversified management mode, with a monthly output of 75 million products, and it takes about 3-4 weeks from order placement to delivery.
What is the soldering temperature resistance of the product?
PBT soldering temperature resistance is 230℃, PA6T 260℃ and LCP 280℃
How long is the product warranty time?
Gold plating for 1 year, tin plating for half a year.
