Applications

· Power systems

· IoT

· Industrial controls

· Audio

· Video

· Scanner

· LED Screen

Specifications

· Current Rating: 3A Max

· Insulation Resistance: 1000MΩ Min

· Dielectric Withstanding: 500V AC

· Contact Resistance: 20mΩ Max

· Operating Temperature: -40°C - +105°C

· Solderability: Reflow capable up to 260°C

Materials

· Plating: Gold flash(0.8”) Standard

Higher gold available

Tin

· Contact Material: Cooper Alloy

· Housing Material: High-temperature Thermoplastic

· Environmental: UL94 V0

Others

· 2D drawing

· Contact CNT to get 3D file

· RoHS & REACH compliant

· UL compliant

product-1094-780

Features

● Light weight and flexible.
● Compachness of electronic products
● Easy assembling and low production cost
● Simple and clean internal design

Advantages

● Complete product range, full pitch series
● Good materials, all materials meet RoHS, REACH certification
● Both small and large orders are acceptable
● Fast delivery time of average 4 weeks

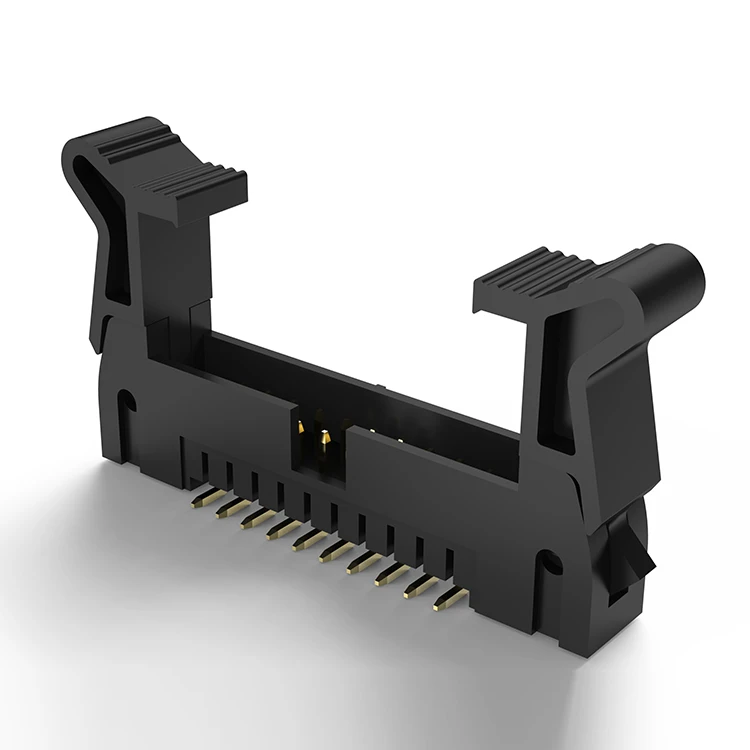

Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in SMT box header with ejector connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in SMT box header with ejector connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
