Applications
· Material handling equipment
· Scanner
· Communication networks
· Monitor
· Medical equipment
· Office equipment
· IoT
Specifications
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8”) Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

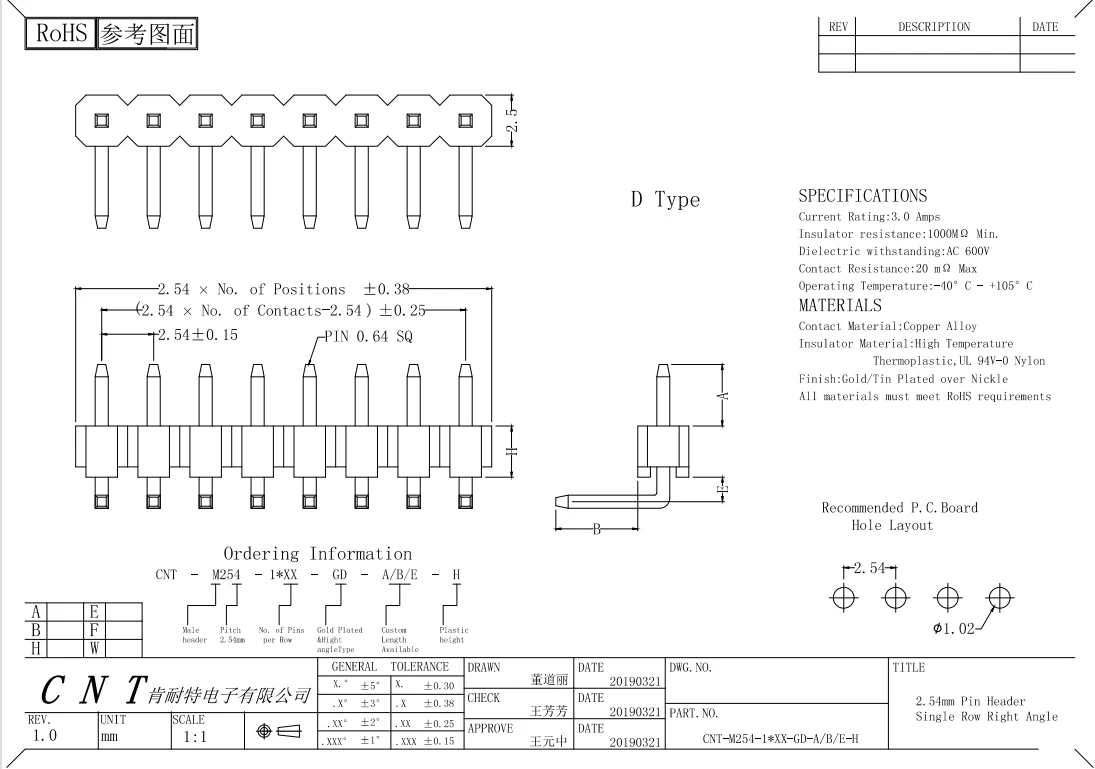

· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Help to make smaller finished product come true
● Compachness of electronic products
● Easy assembling and low production cost
● Simple and clean internal design
● Simplify manufacturing procedure
● Reduct the production cost
Advantages
● Professional consultancy & technical support
● Perfect quality control from materials to finished products.
● According to the market demand, the product is continuously developed
● Customized products avaiable
● Low cost and high reliability
Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in 40 pin male header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 40 pin male header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
What does your quality inspection process include?
Incoming material inspection, first article inspection, process inspection, finished product inspection, and outgoing inspection.
Where are you located?
CNT is located in Kunshan, next to Shanghai, China, only 1.5H drive from Shanghai Hongqiao International Airport.
What is the operating temperature range for CNT's connectors?
It's -40°C - +105°C
How much dielectric withstanding voltage is for CNT's connectors?
The circular and DIN connectors withstand 1000 V (AC) at 50 or 60 Hz for 60 seconds with no flashover or breakdown between every two contacts or between every contact and outer contour of the housing.
