Applications
· Security equipment
· Monitor
· Frequency Converter
· Stereo Amplifier
· LED Screen
· Smart Meters & Terminals
· PCBA
Specifications
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8”) Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Help to make smaller finished product come true
● Ensure the smooth continuous and reliable flow of current
● More convenient to replace and upgrade connectors
● Easy to replace old connectors, save more time and labor cost.
● Improve design flexibility
● Low cost multiple pitches connectors per your application requirements.
Advantages
● Good materials, all materials meet RoHS, REACH certification
● Perfect quality control from materials to finished products.
● Various transporation method
● Systematic lab testing ability
● Skilled and stable staff
● Good before-sales and after-sales service

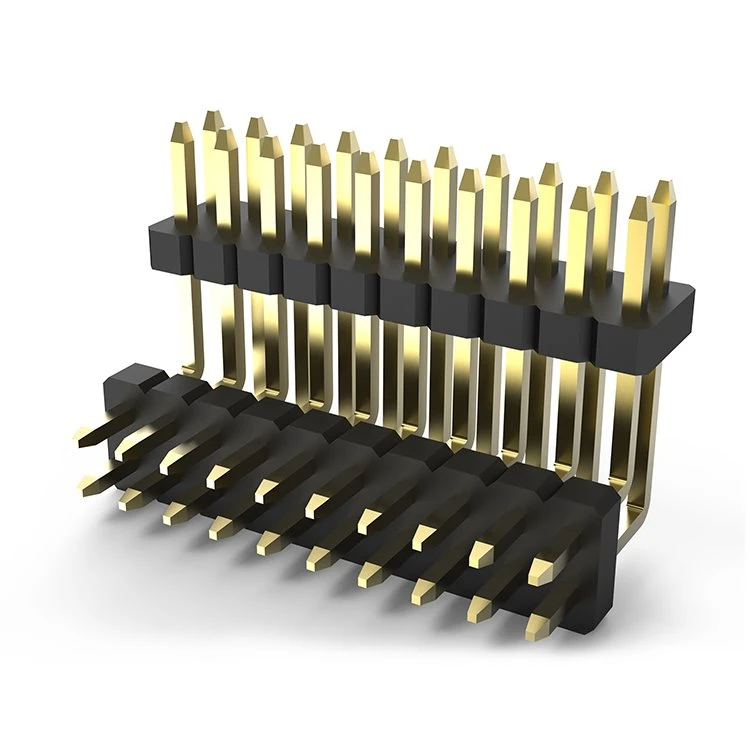

Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in 2.54mm header right angle male connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 2.54mm header right angle male connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
How is the quality of your connectors?
The company has established a high-standard quality supervision system, and has passed the IATF16949 quality management system certification of the automotive industry and the ISO-9001:2008 quality system management system. Products from raw materials to final products will go through IQC, FAI, IPQC, OQC several times to ensure product quality. All raw materials are also certified by ROHS, REACH and UL.
How long is your lead time?
CNT implements diversified management mode, with a monthly output of 75 million products, and it takes about 3-4 weeks from order placement to delivery.
What products do you produce?
Products include board-to-board connectors of pin headers, female headers, box header; board-to-wire connectors of wafer, FPC,RJ, and various customized wiring harnesses.
How long is the sample lead time?
Generally samples need 3 days to 2 weeks, it depends on the materials stock.
