Applications
· Office equipment
· Home appliances
· Servo drives
· Material handling equipment
· Building and home automation
· Industrial controls
Specifications
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8”) Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

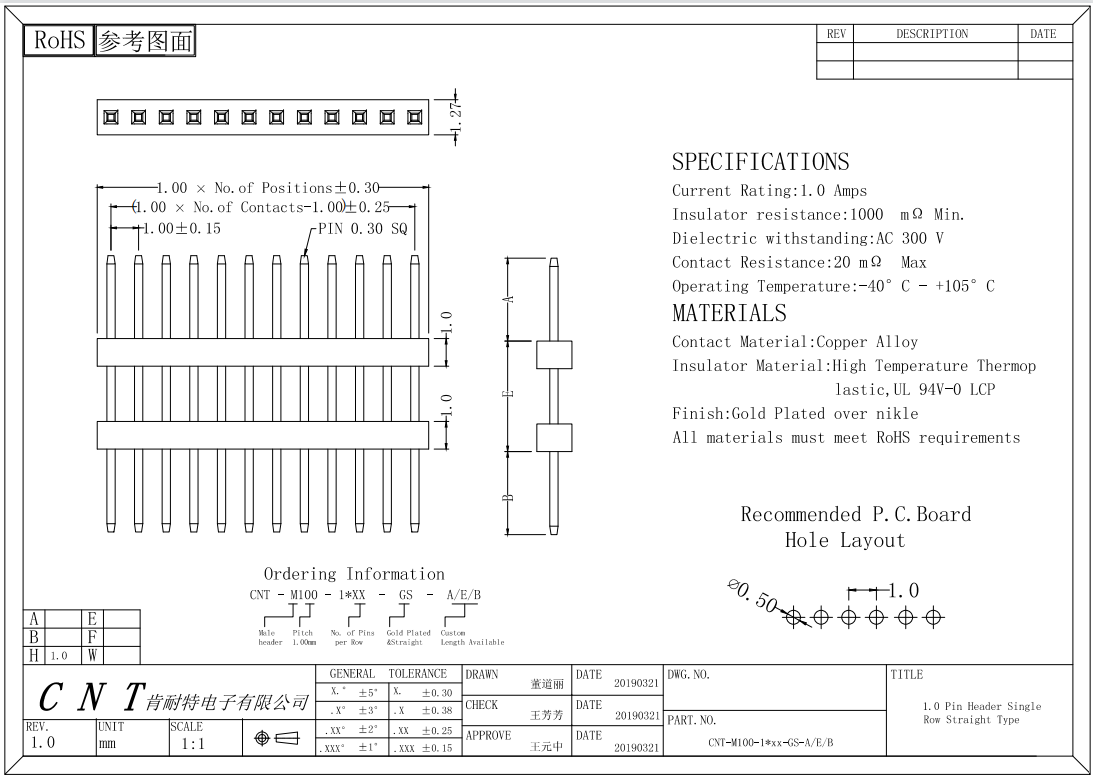

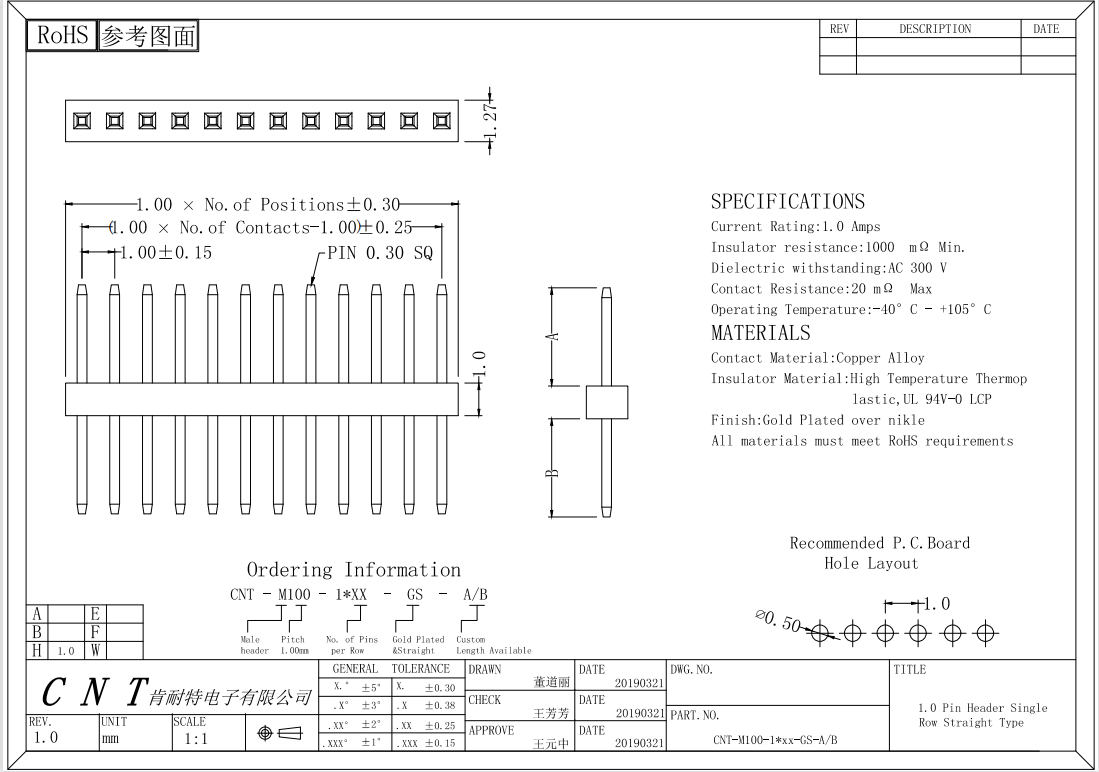

· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Help to make smaller finished product come true
● Simplify the assembly process of electronic products
● More convenient to replace and upgrade connectors
● Easy to replace old connectors, save more time and labor cost.
Advantages
● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in header pins male female connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in header pins male female connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
How much dielectric withstanding voltage is for CNT's connectors?
The circular and DIN connectors withstand 1000 V (AC) at 50 or 60 Hz for 60 seconds with no flashover or breakdown between every two contacts or between every contact and outer contour of the housing.
What material are CNT's connectors made of?
CNT's connectors are made of rugged glass-filled PBT and PA
Do you ship internationally?
Yes, we ship anywhere worldwide. If you are located in Canada, you can order from www.ACWORKS.ca for local Canadian shipping and order pick up.
