Applications
· Smart Meters & Terminals
· Audio
· Video
· Scanner
· Frequency Converter
· Stereo Amplifier
· LED Screen
Specifications
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8”) Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact CNT to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Stable Connection
● Meet the demands of miniaturizing electronic products
● Easy assembling and low production cost
● Simplify manufacturing procedure
Advantages
● Systematic lab testing ability
● Mechanized production, stable quality
● Complete product range, full pitch series
● Low cost and high reliability

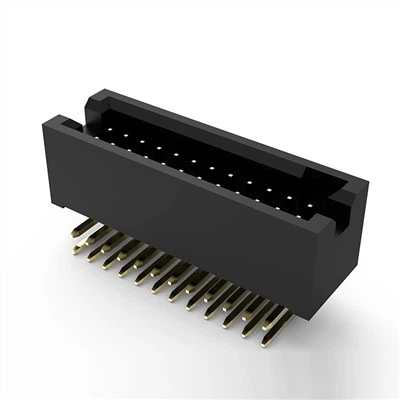

Kunshan Connector Electronics Ltd.(CNT) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. CNT is a reliable manufacturer in 10 pin box header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 10 pin box header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that CNT will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Where are you located?
CNT is located in Kunshan, next to Shanghai, China, only 1.5H drive from Shanghai Hongqiao International Airport.
Can I make changes to an order which I already placed?
Can be modified within a week after order confirmed.
What is the operating temperature range for CNT's connectors?
It's -40°C - +105°C.
